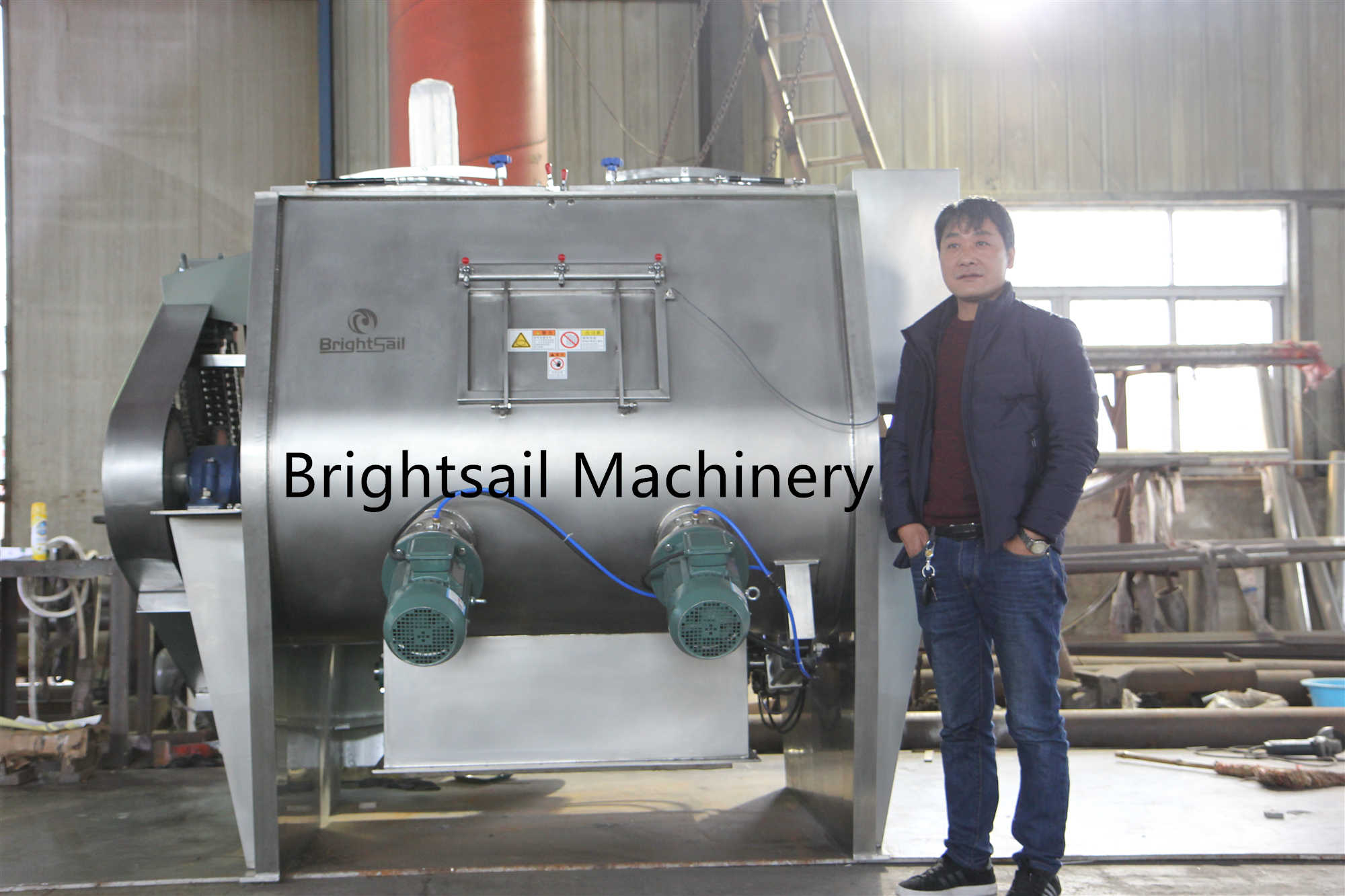

Large capacity cement blender mixer machine fertilizer double shaft paddle mixer
Our BSLdouble shaft paddle mixer is mainly applied in pharmacy, foodstuff and chemical industry. It is suitable to blend dry granules, powder or pasty materials. It is suitable for large or medium scale production.
This machine has characteristics of powerful motion and high efficient mixing. There are two paddles in the horizontal container rotate reversely at a constant speed. The design ensures materials move radially calculating and axially in order to mix in a very short time.
Working method:
Driven by the directly-connected decelerator,the chains drive the dual-axis rotor to move reversely at a certain speed and, during the movement, the paddle on the axis makes the material go ahead on the one hand and, on the other hand, throws it along with the radial direction to the oblique-front space. The materials on the two sides move in the reversed areas of their own to go to and fro to get direction and are mutually dissolved into the penetrated and mixed so that a fluidized weightless area and rotating vortex is formed in the central part and continually moves along with the axial and radial directions so as to form a full-respect combined cycle to quickly get the uniform mixing effect.
Main features:
1. Stronger application capabilities:can be applied to powder mixing and low viscosity fluid mixing;More drive components are available, designed to speed according to material conditions, effectively improving production efficiency;
2. Different feeding port and discharge port connection standard configuration meet the operation requirements of different customers;
3. Larger mixer contact surface, shorter mixing time and excellent mixing uniformity;
4. More non-standard customized choices to better meet customer needs;
5. Spindle flange connection, easy to clean and overhaul;
6. The total height of the equipment is only 1/2 of the vertical mixer of the same specification, which greatly reduces the height of the factory; it is more suitable for direct connection with other supporting equipment, which reduces the equipment footprint.
Our service:
1. We take customers as our gods. We devote to all-round service of all the products from shipment to maintenance.if you need our engineer installation in your factory,we will arrange visa in time.
2. We will supply long distance operation video to you all the time.
3. After placing order, we provide the warranty of one year.
4. If you have any problems, we will help to solve on line in first time.
5. Our products have CE and ISO certificate, they are of good quality with lower price.
Technical data:
| Model | Work volume | Speed (rpm) | Motor power(KW) | Overall size (L*W*H) (mm) | Weight (kg) | Output size (mm) |
| BSL-100 | 60L | 2*57 | 3 | 1320(L)*700(W)*700(H) | 320 | 2*200*50 |
| BSL-300 | 180L | 2*57 | 5.5 | 1242(L)*1278(W)*1025(H) | 750 | 2*250*60 |
| BSL-500 | 300L | 2*51 | 7.5 | 1412(L)*1410(W)*1230(H) | 1000 | 2*300*80 |
| BSL-1000 | 600L | 2*43 | 15 | 1875(L)*1610(W)*1350(H) | 1550 | 2*350*120 |
| BSL-2000 | 1200L | 2*43 | 18.5 | 2312(L)*2160(W)*1775(H) | 2500 | 2*350*120 |
| BSL-3000 | 1800L | 2*36 | 22 | 2408(L)*2400(W)*1955(H) | 2900 | 2*350*120 |
| BSL-4000 | 2400L | 2*36 | 30 | 2822(L)*2546(W)*2015(H) | 3600 | 2*360*140 |
| BSL-6000 | 3600L | 2*29 | 45 | 3075(L)*2980(W)*2235(H) | 5600 | 2*700*140 |
| BSL-8000 | 4800L | 2*29 | 55 | 3278(L)*3426(W)*2425(H) | 7100 | 2*700*140 |
| BSL-10000 | 6000L | 2*29 | 75 | 3538(L)*3645(W)*2615(H) | 8000 | 2*800*140 |
